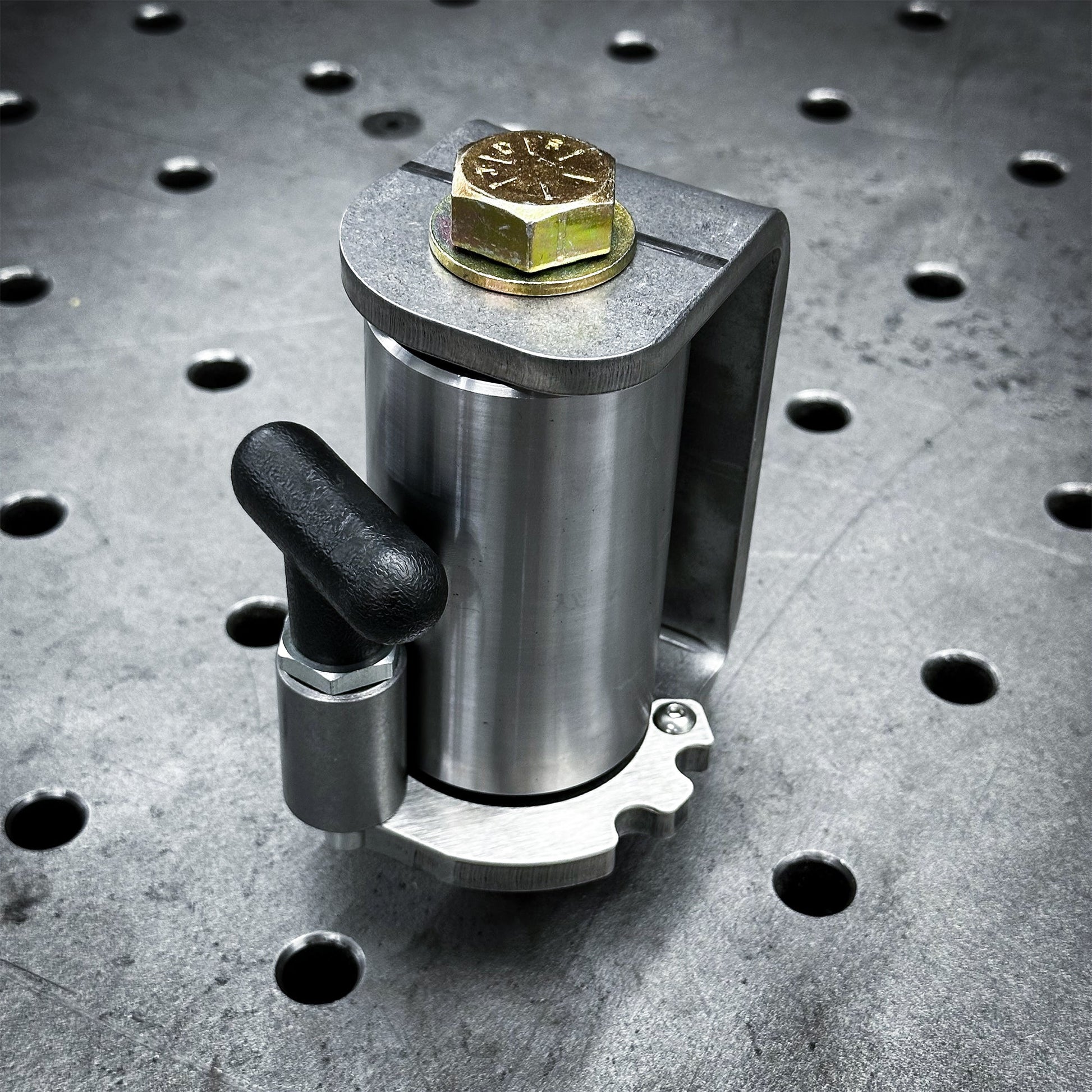

Swing Out Bumper Tire Carrier Hinge

$169.00 USD

Sale Sold out

Swing Out Mounting Side Passenger Side (Right) Driver Side (Left)

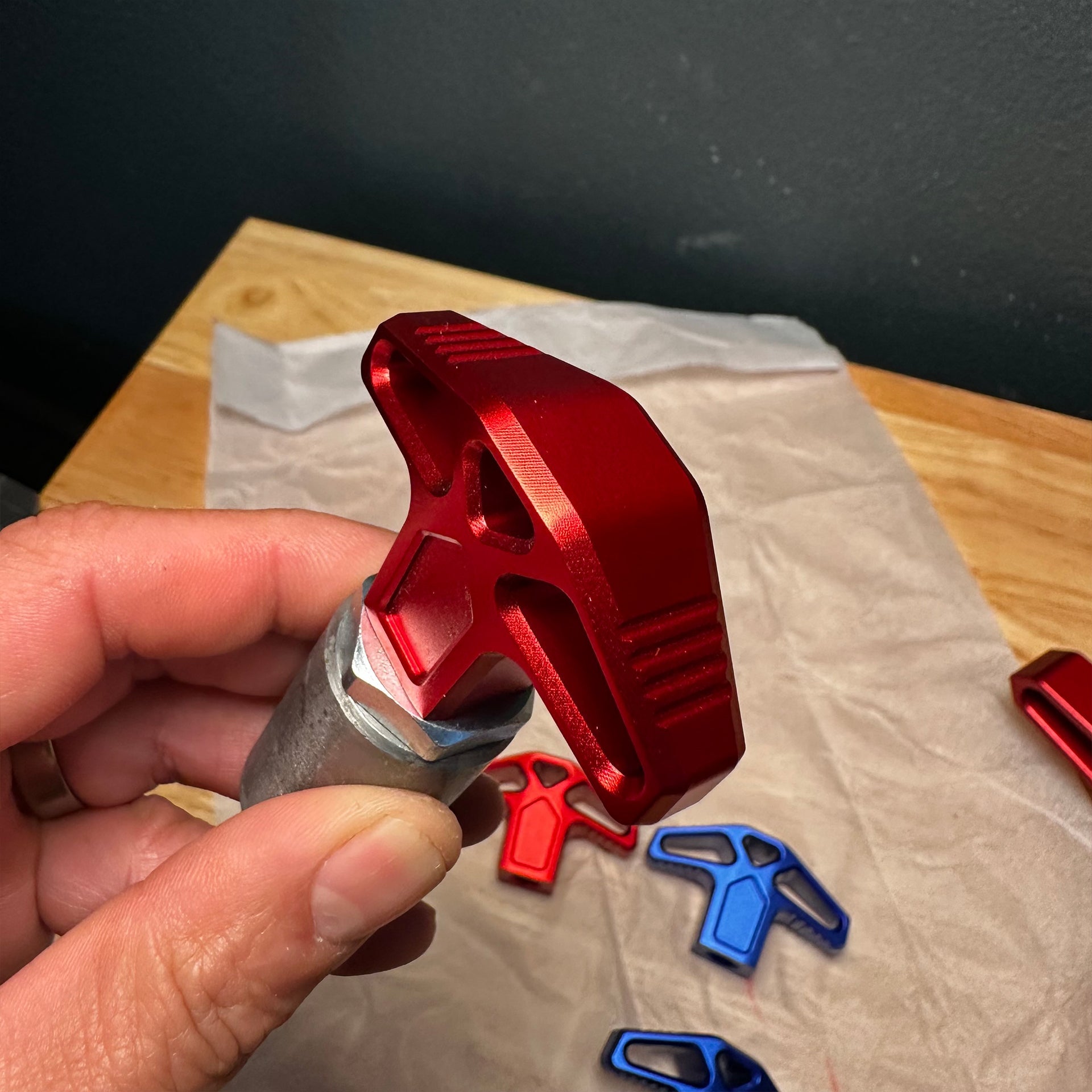

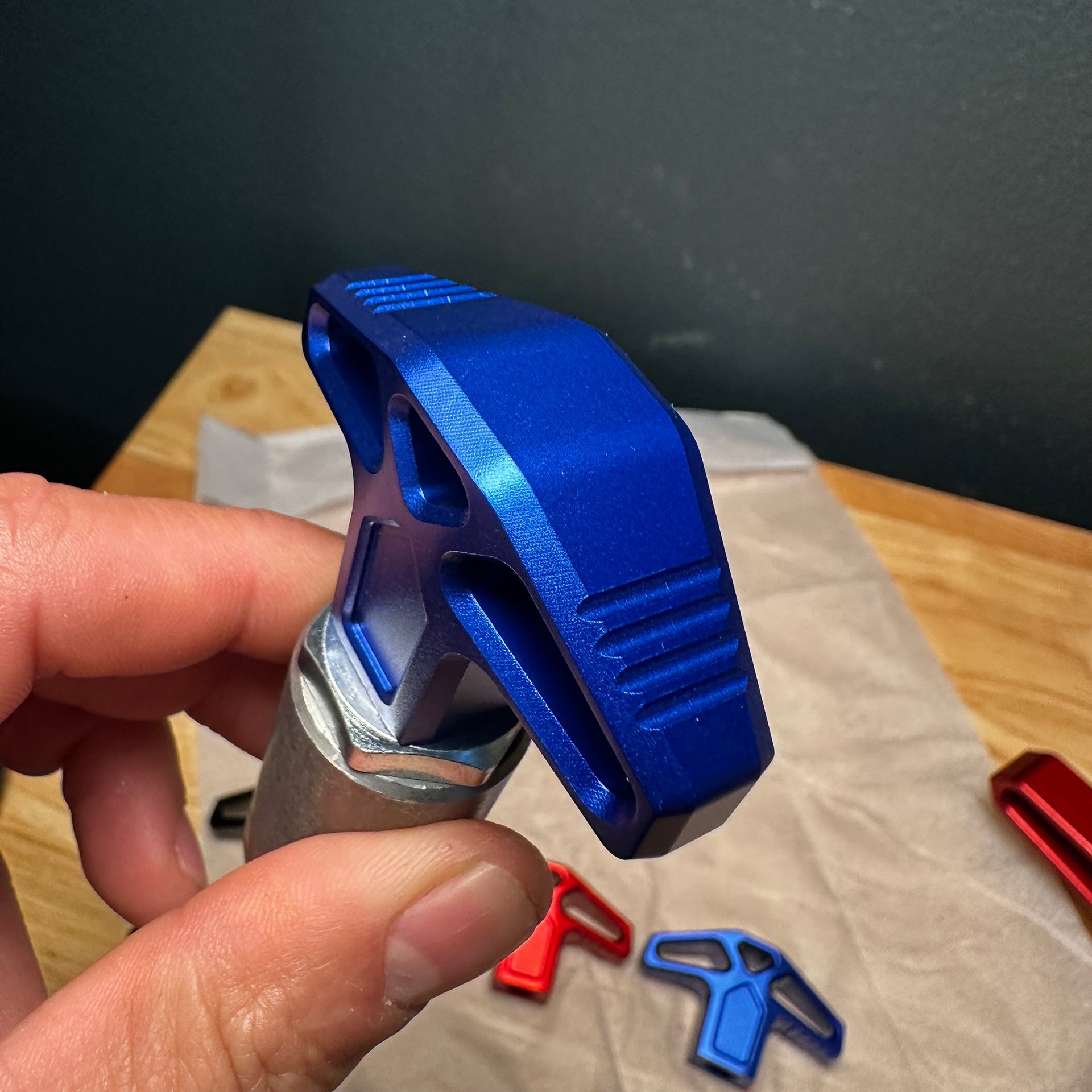

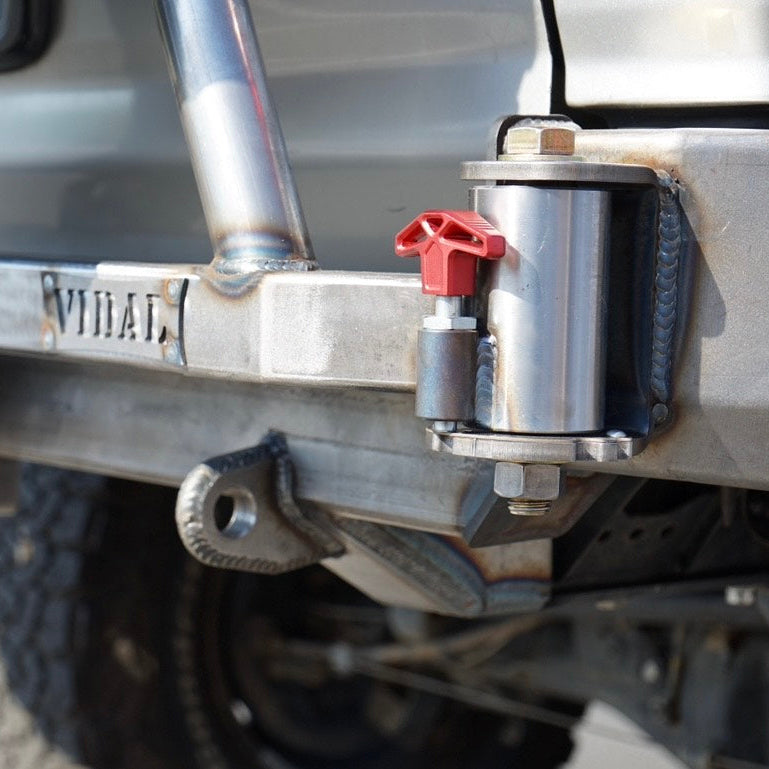

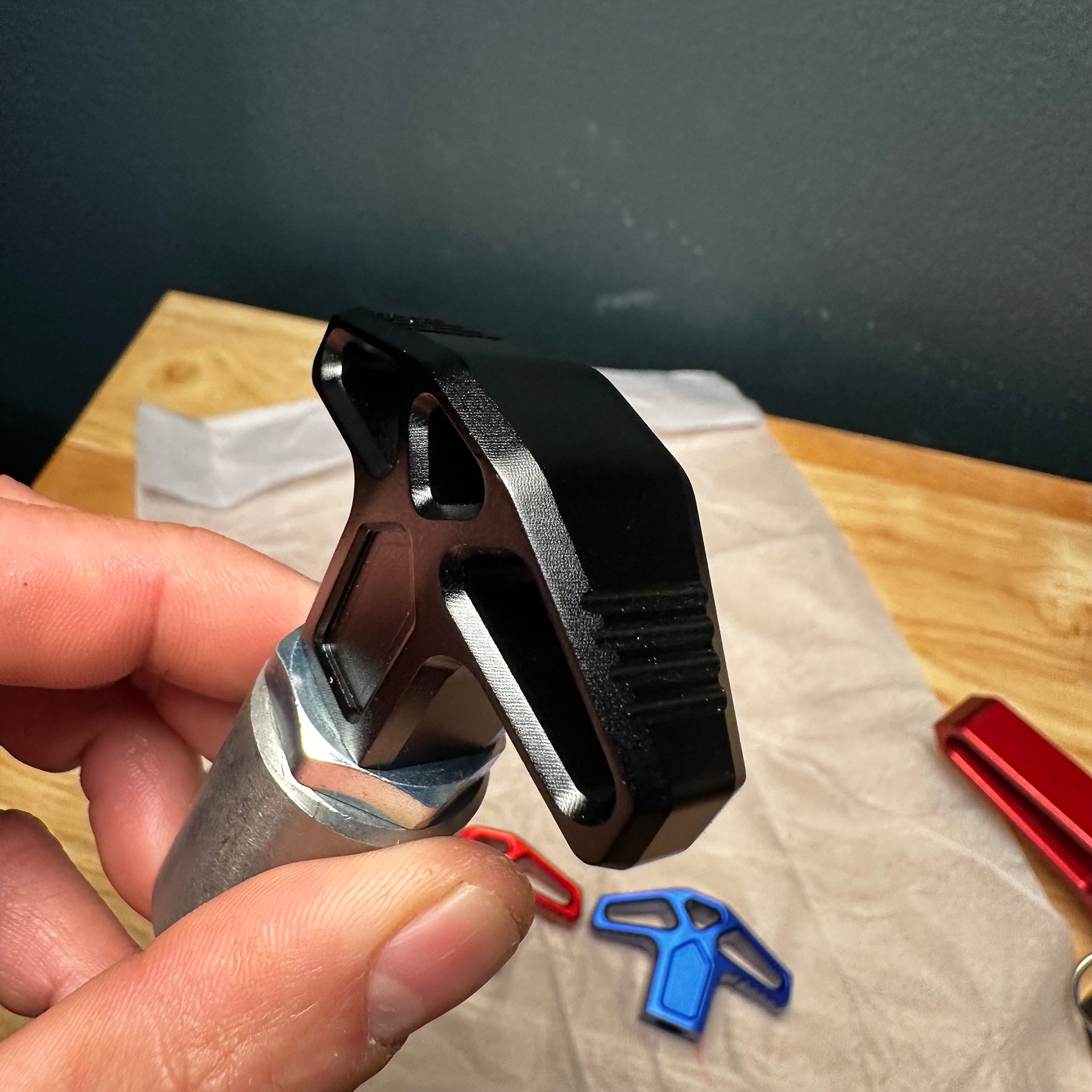

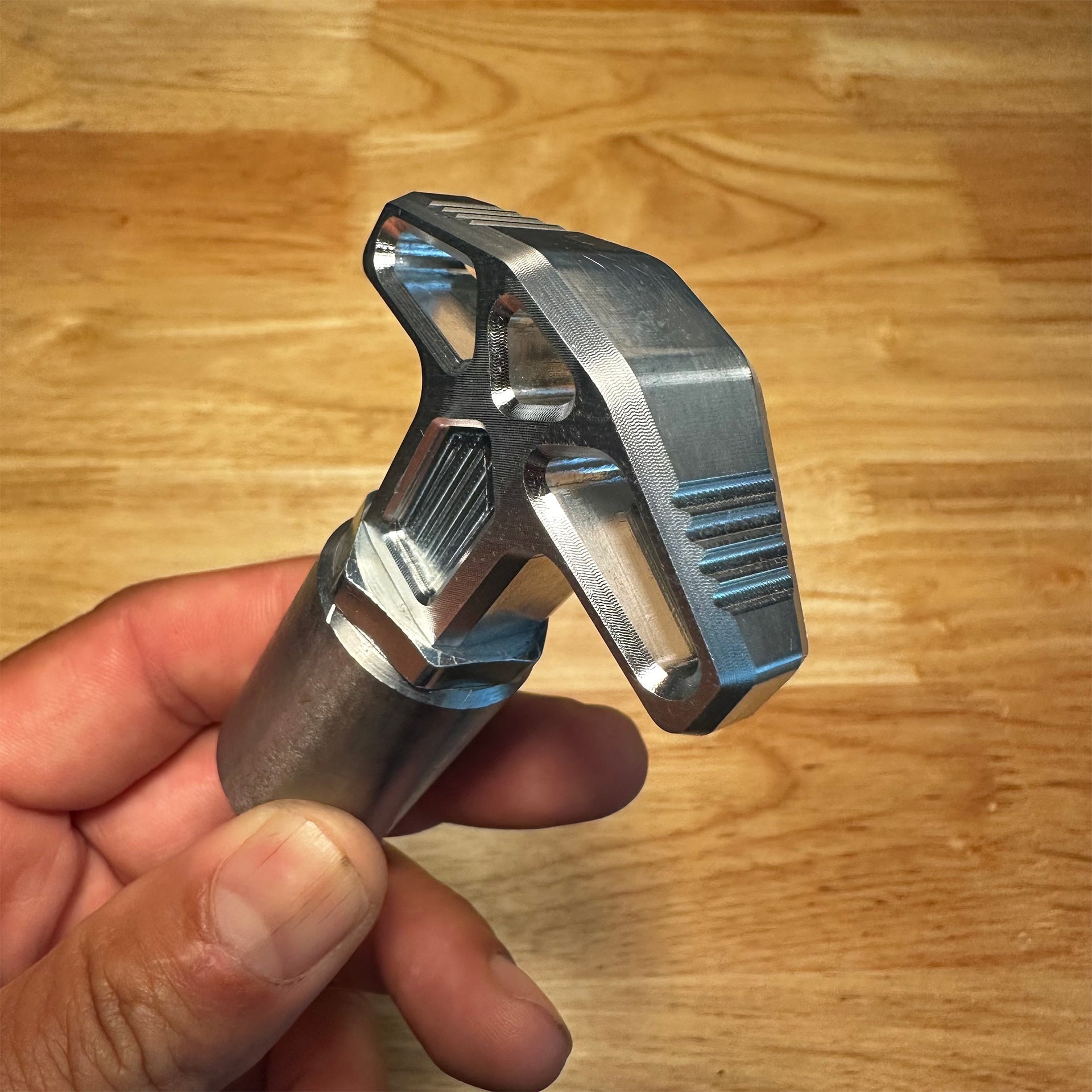

T-Handle for Plunger Pin Standard- Plastic Billet - Red Billet - Black Billet - Blue Billet - Raw Aluminum

Quantity

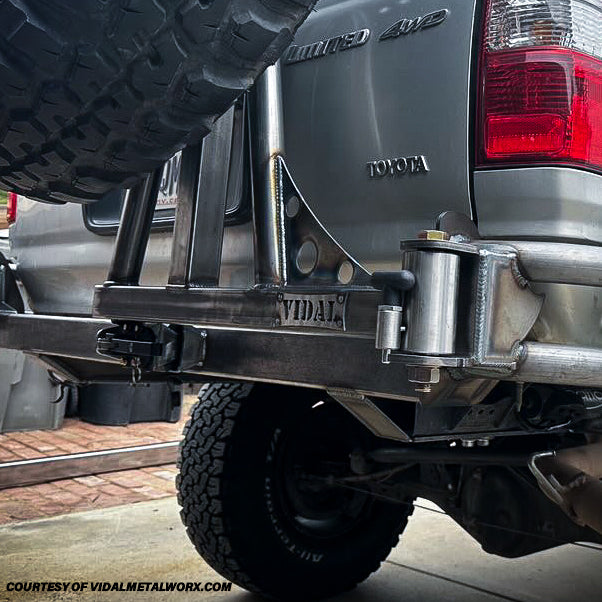

This is the hinge we use on all of our swing out bumpers that we build here at JC Customs. Comes with fully machined surfaces, Koyo bearings and offers an optional secondary latching feature built in to the bracket.

Features:

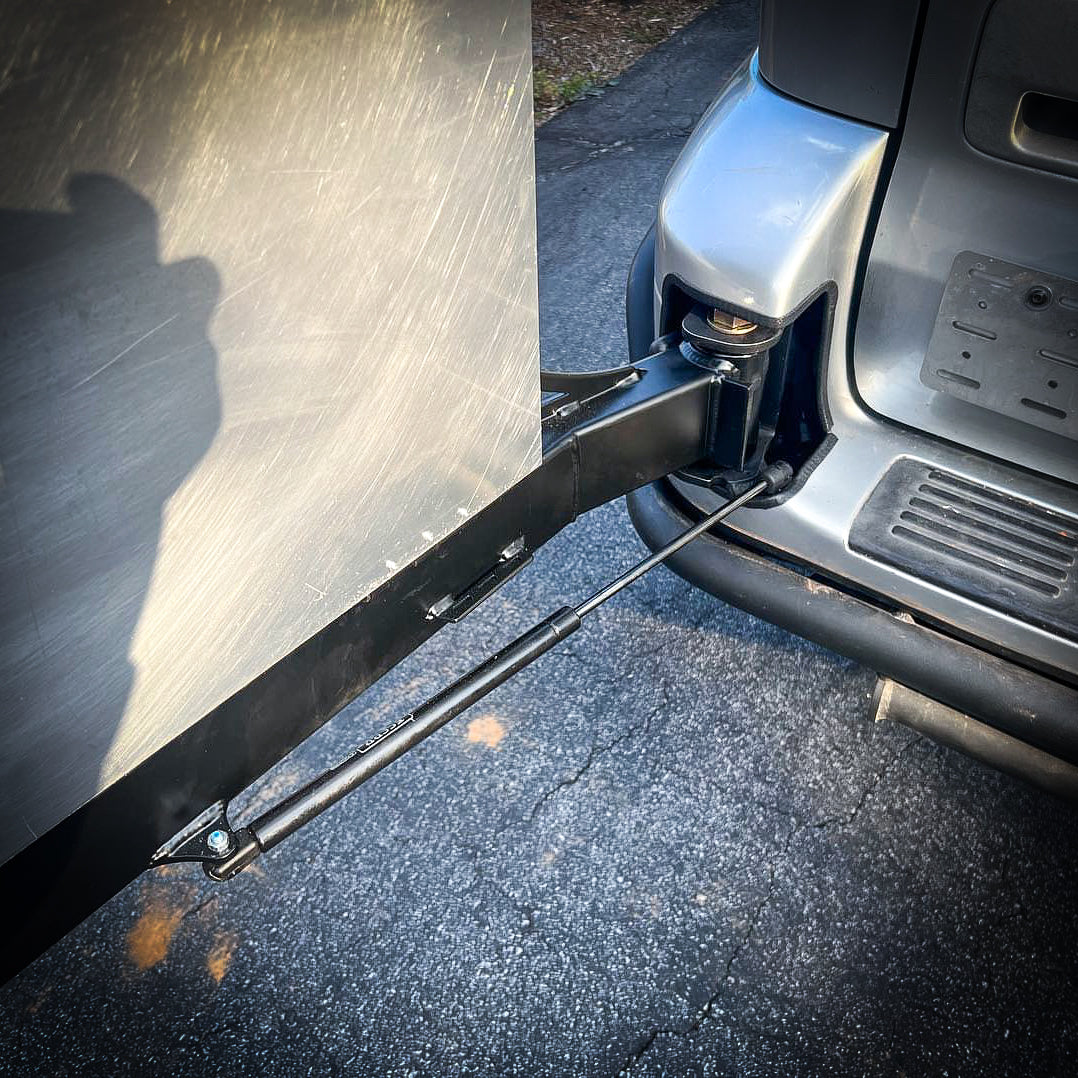

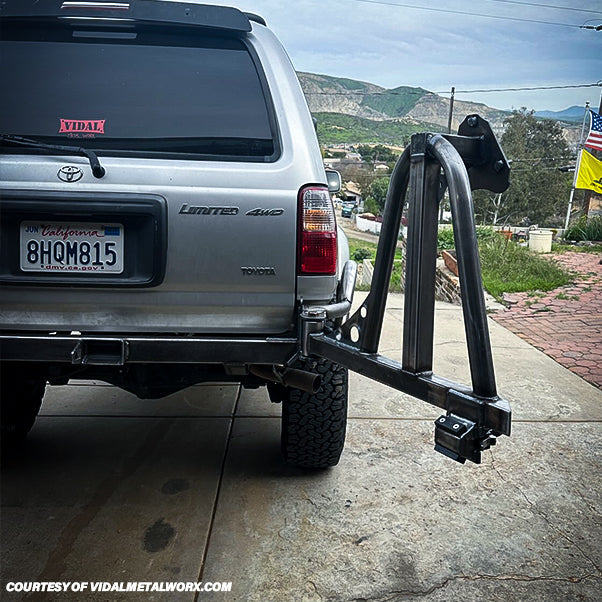

Can open and lock to 90 or 120 degrees which means it’ll help clear your liftgate.
Comes with the option to have the plunger pin in the lock or free open position based of the wear pad of choice
Low profile design
Hinge Bracket is laser cut 5/16″ thick steel
Stainless Steel Wear Pad with Socket Head Screw
High Quality 1000# Koyo Taper Roller Bearings
3/4″ Grade 8 Bolt and Nylon Lock Nut

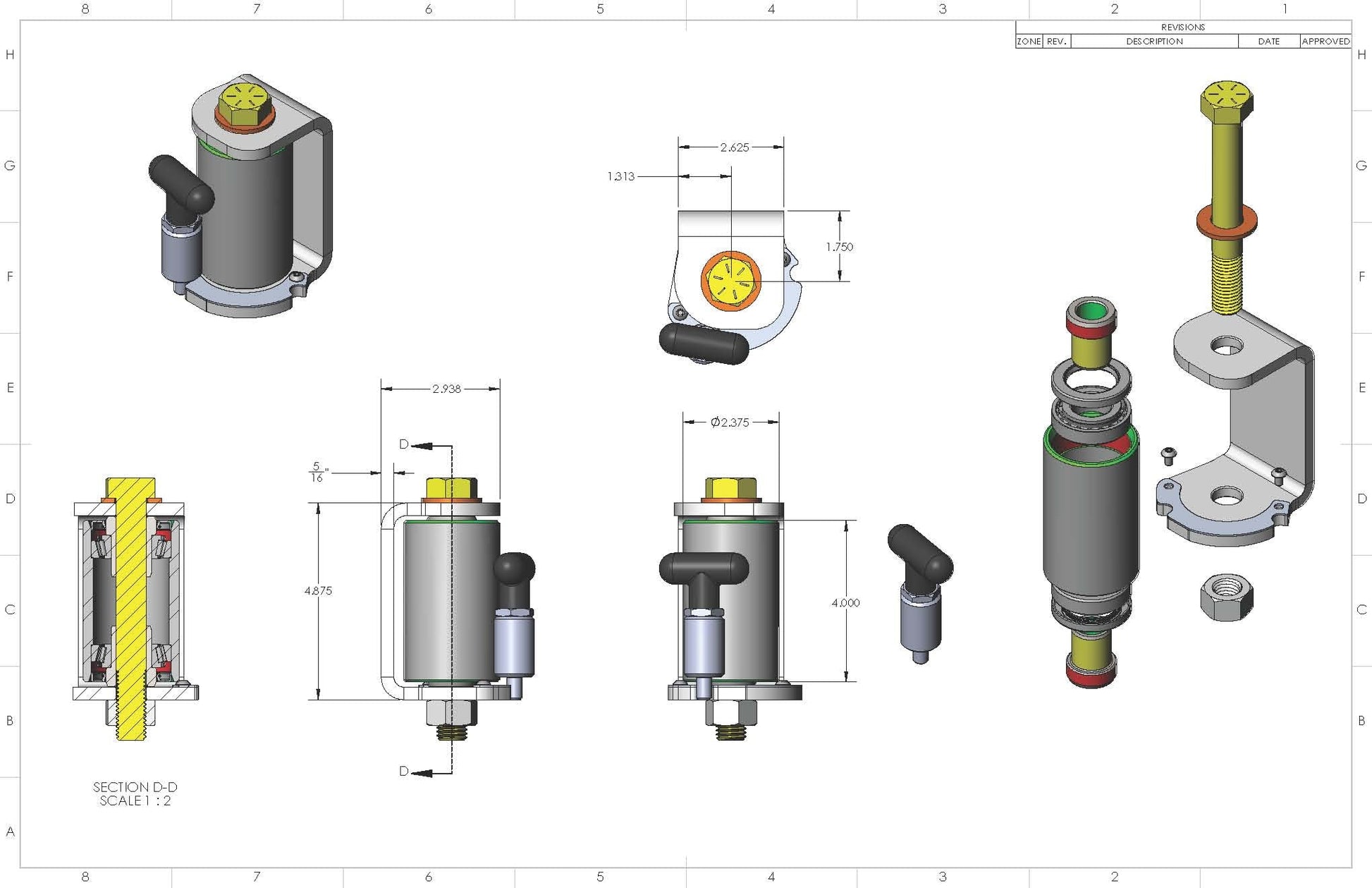

2.375″ Diameter x 4″ Tall FULLY machine Hinge Body with Bearing Races already pressed in
Double Lip Dust Seals

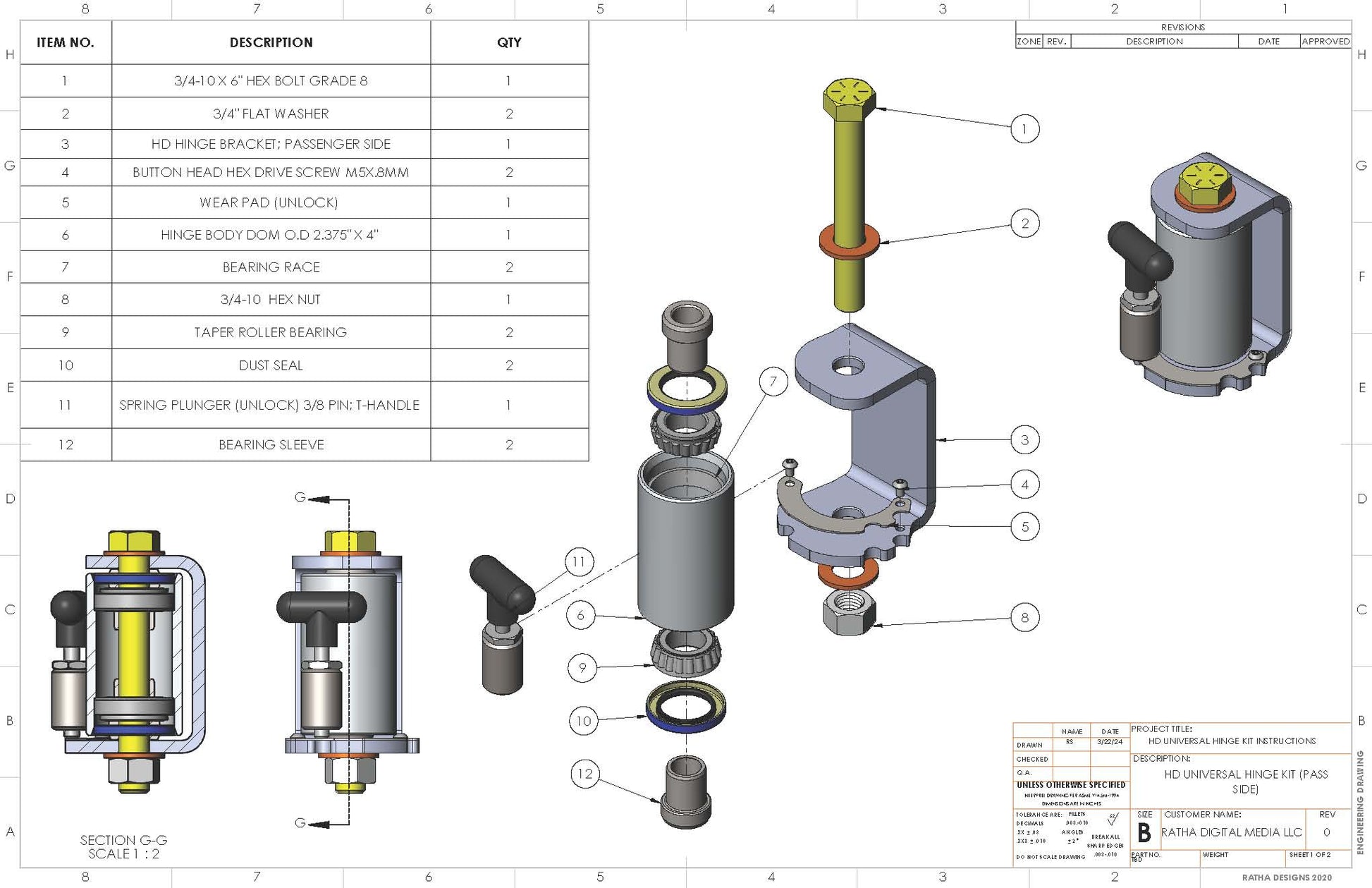

Installation Instructions – Hinge Kit Assembly

FREE SHIPPING anywhere in the USA + Puerto Rico (Please reach out to me for international orders)

Designed and built by Ratha Precision Designs.

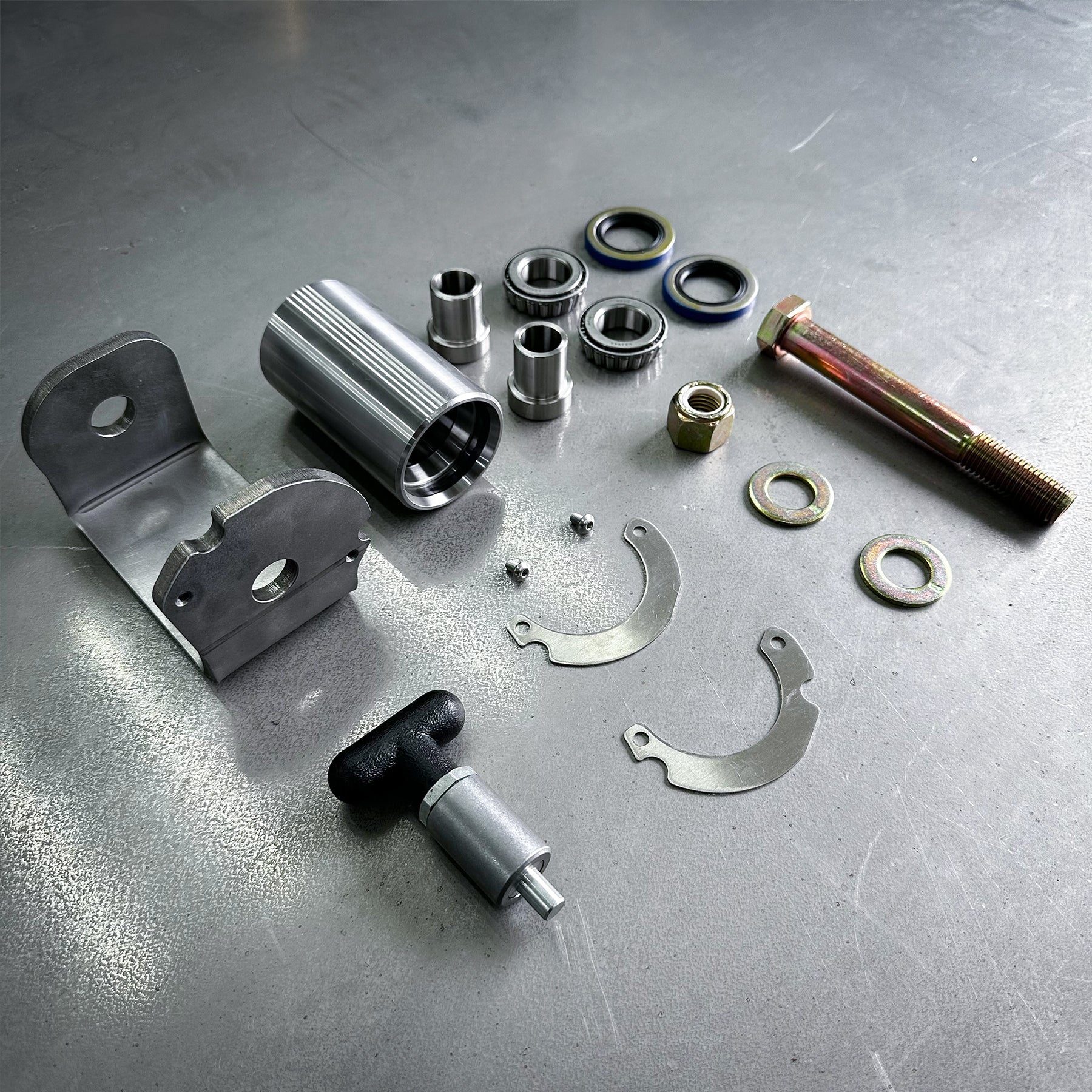

What's Included:

Standard T-Handle Plunger Pin
Hinge Bracket is laser cut 5/16″ thick steel
Three Types of Stainless Steel Wear Pad with Socket Head Screw
High Quality 1000# KOYO brand Taper Roller Bearings. Taper Bearing Already Pressed In.

We offer Volume Pricing (See Table Below) *Discount will apply at checkout
