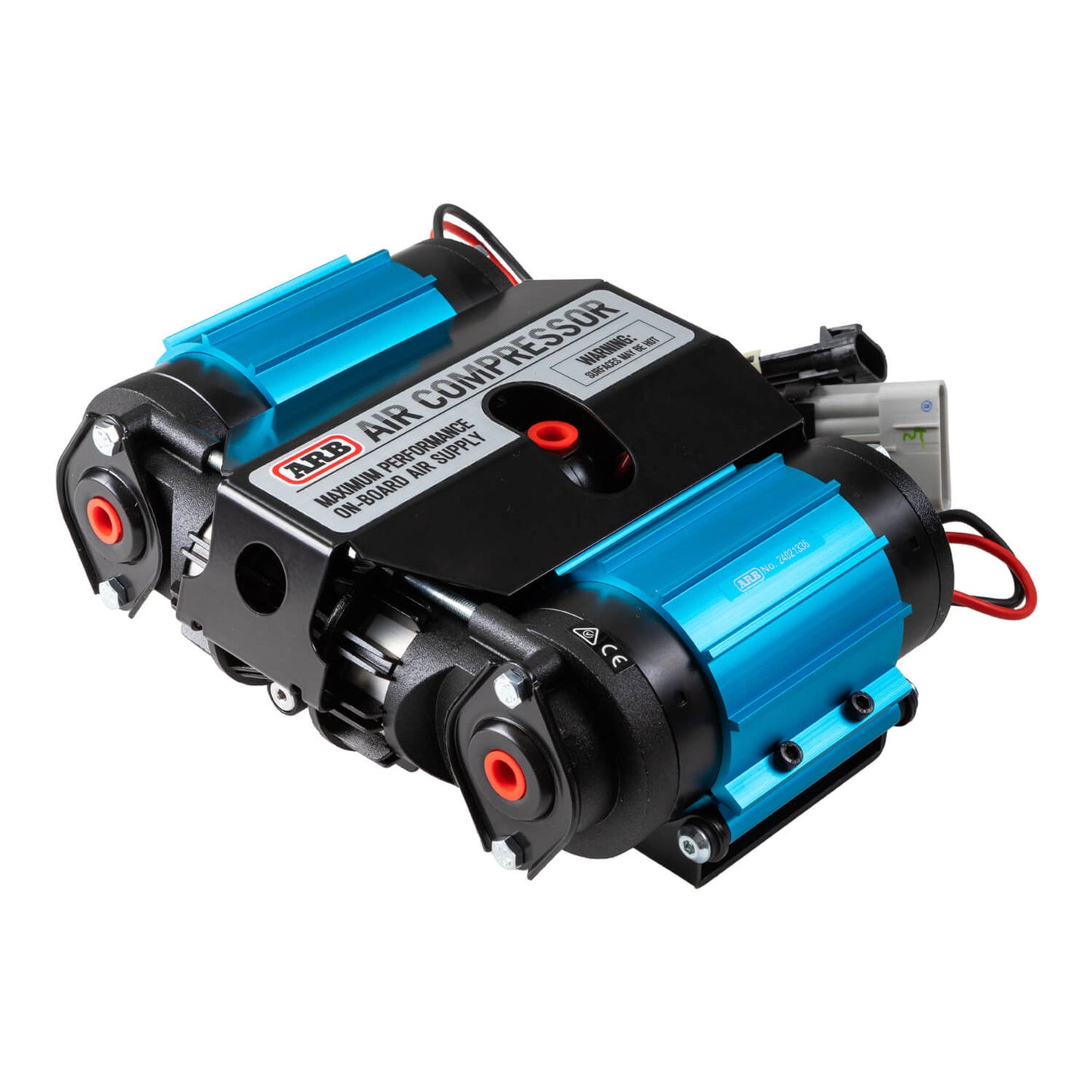

ARB Twin Motor On Board 12V Air Compressor

Part Number: CKMTA12

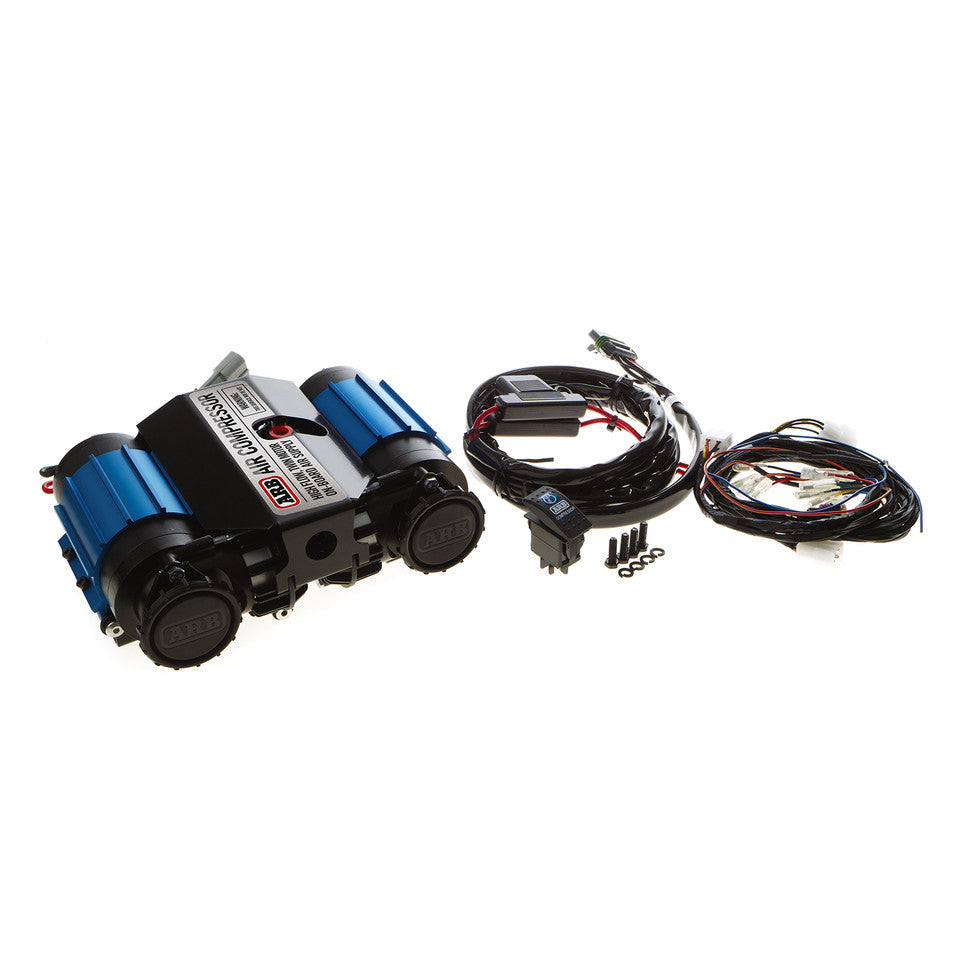

ARBs new CKMTA12 and CKMTA24 twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker , and the harsh and demanding environment of the ARB Air Locker user. ;

Features & Benefits

• Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
• On-board model available in either a 12V or 24V configuration
• Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
• 100% duty cycle
• Sealed for moisture and dust resistance
• Hard anodized cylinder bores for reduced friction
• Teflon impregnated carbon fiber piston seals for maximum trouble free life
• Anodized mounting bracket dissipates heat
• Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
• Over-pressure safety valve equipped

Specs:

• Prop 65No
• Volts12V
• Width7.5 inch
• Height4 inch
• Length10.8 inch
• Weight17.4 lb
• Max Psi150
• Max Amps68.6
• IP RatingIP55
• Duty Cycle100% 60/0
• Air Flow 0PSI6.16CFM
• Air Flow 29PSI4.68CFM
• Warranty3 YR
