Swing Arm Latch Guide for Bike Racks and Custom Carriers

Building a reliable bike rack or custom carrier requires more than selecting strong materials and proper fabrication techniques. Every component plays an important role in safety, stability, and long-term performance. One of the most important parts of a swing-out carrier system is the swing arm latch, which helps secure the moving arm in place during operation and transportation.

A properly designed latch from JC Customs Metal Fab provides a dependable locking point for swing arm mechanisms used on bike racks, tire carriers, and other custom-built vehicle accessories. Choosing the right hardware helps reduce unwanted movement, improves usability, and supports a cleaner fabrication process for custom fabrication projects.

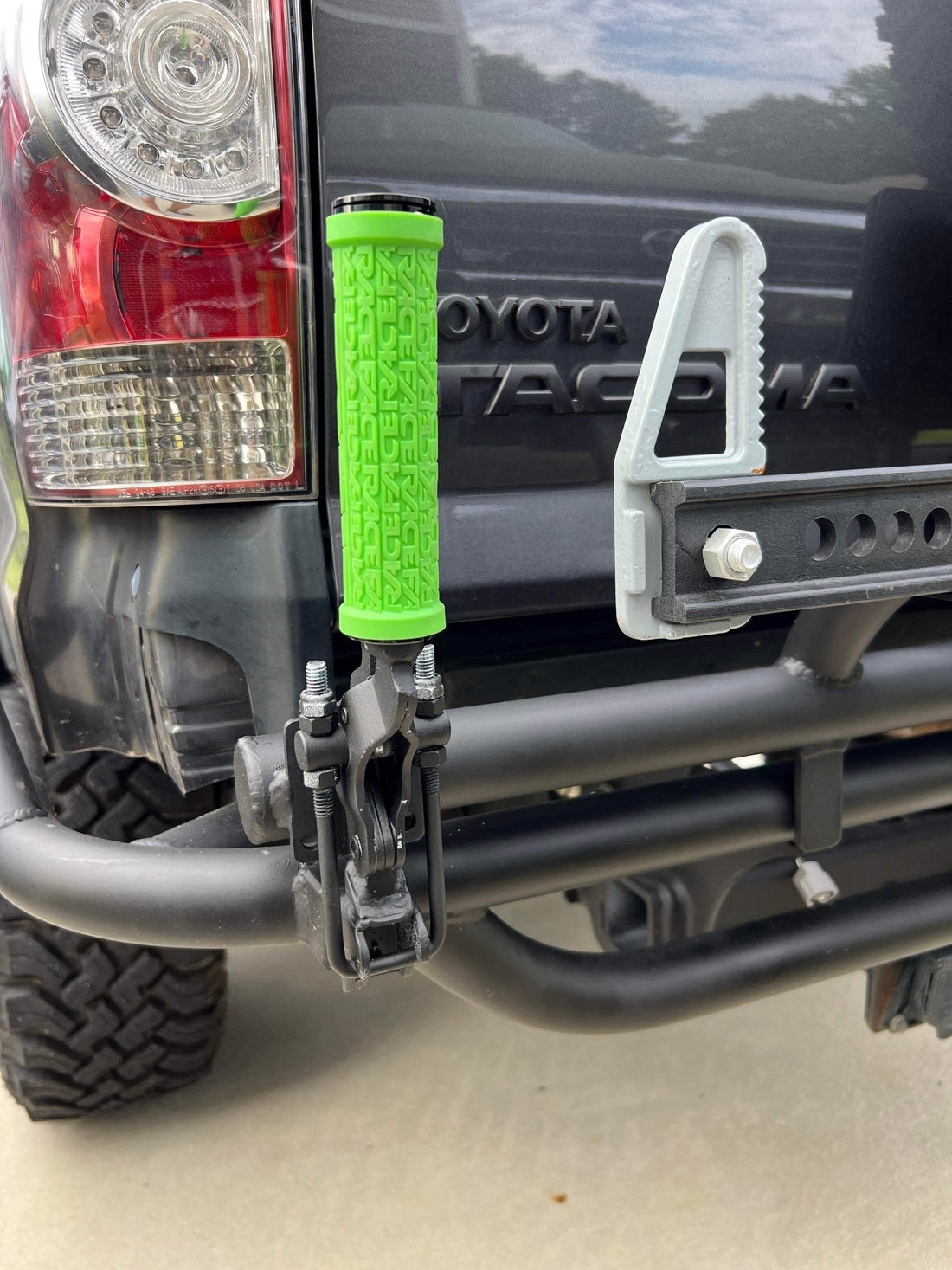

What Is a Swing Arm Latch?

A mechanical locking component designed to secure a hinged or pivoting arm in a fixed position. It is commonly used in swing-out systems where a carrier arm needs to open for access and then lock securely when closed.

In bike racks and custom carriers, the swing arm allows easier access to vehicle areas such as rear doors, tailgates, or cargo spaces. Without a dependable locking mechanism, the carrier arm may move during driving, creating unnecessary stress on the frame, mounting points, and attached equipment.

A quality works by holding the carrier arm firmly against its mounting point. Depending on the design, the latch may use a pin, locking mechanism, or adjustable hardware system to provide a secure connection. For custom fabrication projects, the latch is not just a convenience feature. It is an essential part of the carrier structure that contributes to proper alignment and safe operation.

Why a Quality Swing Arm Latch Matters

Custom carriers often experience vibration, road impacts, weather exposure, and repeated use. A weak or poorly fitted latch can create movement that affects the entire assembly.

A durable swing arm latch helps:

• Keep the swing arm securely positioned during travel
• Reduce unwanted rattling and movement
• Support smoother opening and closing operation
• Improve the overall durability of a custom carrier system
• Provide confidence during everyday use and off-road conditions

When designing or upgrading a carrier system, choosing dependable fabrication hardware helps ensure that each component works together properly.

Important Features to Consider

Selecting the right swing arm requires attention to several performance factors. The best option depends on the carrier design, material selection, usage conditions, and fabrication requirements.

Strength

One of the most important considerations when choosing a swing arm. Bike racks and custom carriers can carry significant weight, especially when transporting multiple bikes, spare tires, or additional gear.

A strong latch should handle repeated loading without bending, loosening, or failing under stress. Heavy-duty construction materials and precision manufacturing help provide the durability needed for fabrication projects.

When evaluating latch strength, consider:

• Material thickness
• Overall construction quality
• Load requirements of the carrier system
• Welding and mounting method
• Frequency of use

A properly sized latch should match of the surrounding carrier structure. Installing a heavy-duty latch on a weak frame will not improve the overall system, so every component should be designed to work together. For builders creating custom bike racks, combining a durable latch with quality custom fabrication hardware can help create a stronger and more reliable finished product.

Corrosion Resistance

Bike racks and vehicle carriers are exposed to outdoor conditions, including rain, mud, road salt, and moisture. Over time, untreated metal components may develop corrosion that affects appearance and performance. A corrosion-resistant provides better durability in changing environments. Protective finishes, quality materials, and proper maintenance help reduce wear caused by exposure.

Corrosion resistance is especially important for:

• Off-road vehicles
• Outdoor storage applications
• Coastal environments
• Frequently used bike carriers

Choosing hardware designed for outdoor use helps maintain smooth operation and reduces the need for frequent replacement.

Ease of Operation

It provide secure locking while remaining easy to operate. A latch that is difficult to engage or release can make daily use frustrating.

Important usability features include:

• Smooth locking action
• Proper alignment with the carrier arm
• Simple adjustment options
• Easy access for operation

The best latch design provides a balance between security and convenience. It should hold firmly when closed while allowing quick access when the carrier needs to swing open. For DIY builders, ease of installation is another important factor. Hardware that integrates well with common fabrication methods can save time during the building process.

Where Swing Arm Latches Are Commonly Used

Swing arm are used in many custom vehicle and fabrication applications where a pivoting component needs a secure locking point.

Bike Racks

One of the most common applications is custom bike racks. Swing-out bike racks allow users to move the rack away from the vehicle to access rear doors or cargo areas. A reliable swing arm keeps the rack stable while driving and helps prevent unwanted movement caused by road vibration. Pairing a quality latch with the right bike rack accessories can improve the overall functionality and convenience of a custom bike transport setup.

Tire Carriers

Swing-out tire carriers often use similar locking systems. Since spare tires can add significant weight, the latch must provide dependable support during travel. A properly fitted latch helps keep the carrier arm aligned and prevents excessive movement that could damage mounting points.

Custom Vehicle Carriers

Fabricators also use swing arm for custom storage carriers, utility mounts, and specialty vehicle builds. These applications require hardware that can handle repeated operation and outdoor exposure. Custom projects often involve unique dimensions and designs, making adjustable and durable hardware valuable for achieving a proper fit.

How to Choose the Right Swing Arm Latch for a Project

Before purchasing a swing arm, consider the requirements of the complete carrier system.

Ask these questions:

• How much weight will the carrier support?
• Will the vehicle be used on highways, trails, or both?
• How frequently will the swing arm be opened and closed?
• What materials are being used for fabrication?
• Does the latch match the carrier design?

A latch designed for a lightweight application may not perform well on a larger carrier system. Matching the hardware to the project requirements helps create a safer and more dependable build. Fabricators should also consider installation location, mounting strength, and alignment. Even a high-quality latch requires proper installation to perform correctly.

Maintenance Tips

Regular maintenance helps keep a swing arm functioning properly throughout years of use. Simple inspections and cleaning routines can prevent common issues caused by dirt, moisture, and normal wear.

Cleaning

Dirt, dust, and debris can affect latch movement over time. Regular cleaning helps maintain smooth operation and prevents buildup around moving parts.

Recommended cleaning practices include:

• Removing dirt after outdoor use
• Wiping away moisture
• Checking for debris around locking areas
• Cleaning before applying lubricant

For off-road vehicles or outdoor carriers, more frequent cleaning may be necessary due to increased exposure to mud and debris.

Lubrication

Moving components benefit from proper lubrication. Applying a suitable lubricant helps reduce friction and keeps the latch operating smoothly.

When lubricating a swing arm latch:

• Use products suitable for metal hardware
• Avoid excessive lubricant buildup that attracts dirt
• Apply lubricant after cleaning

A smooth operating latch is easier to use and experiences less wear over time.

Hardware Inspection

Regular inspections help identify problems before they become larger issues. Check the latch, mounting points, and surrounding hardware for signs of wear.

Look for:

• Loose bolts or fasteners
• Damage or bending
• Rust or corrosion
• Alignment problems
• Reduced locking performance

Addressing small issues early helps maintain the safety and reliability of the entire carrier system.

FAQ

What is a swing arm latch used for?

A swing arm latch secures a pivoting arm in place on systems such as bike racks, tire carriers, and custom vehicle carriers. It helps prevent movement while the carrier is in use.

Why does a bike rack need a swing arm latch?

A bike rack with a swing-out design requires a latch to hold the arm securely during transportation. It helps maintain stability and reduces unwanted movement.

How do I maintain a swing arm latch?

Regular cleaning, lubrication, and hardware inspections help maintain proper function. Checking for corrosion and loose fasteners also helps extend service life.

Can a swing arm latch be used for custom fabrication projects?

Yes. Swing arm latches are commonly used in custom fabrication projects where a hinged component requires a secure locking point.

What should I consider before buying a swing arm latch?

Consider the carrier design, weight requirements, material strength, weather exposure, and installation method before selecting a latch.

Choosing the Right Swing Arm Latch for Your Build

A dependable swing arm latch is an important component for bike racks, custom carriers, and other swing-out fabrication projects. Choosing hardware with the right combination of strength, corrosion resistance, and ease of operation helps create a secure and functional system.

Proper installation and routine maintenance also play an important role in long-term performance. For builders looking for reliable hardware for custom carrier projects, JC Customs Metal Fab offers purpose-built swing arm solutions designed to support safer, more efficient, and dependable fabrication results.
