4Runner Gen 3 Battery Cable Kit Installation Guide

Upgrading your Toyota 4Runner’s electrical system is a smart move to ensure long-term reliability, consistent power delivery, and full compatibility with aftermarket upgrades. A high-quality battery cable kit is one of the most essential foundational upgrades, especially when running auxiliary lighting, winches, air compressors, or overlanding accessories that place higher demands on the electrical system.

Designed for durability and performance, solutions from JC Customs Metal Fab help reduce voltage drop, improve starting power, and protect critical components. This guide walks through everything needed to install the kit safely and efficiently while highlighting related Toyota 4Runner that further enhance capability and confidence on and off the trail.

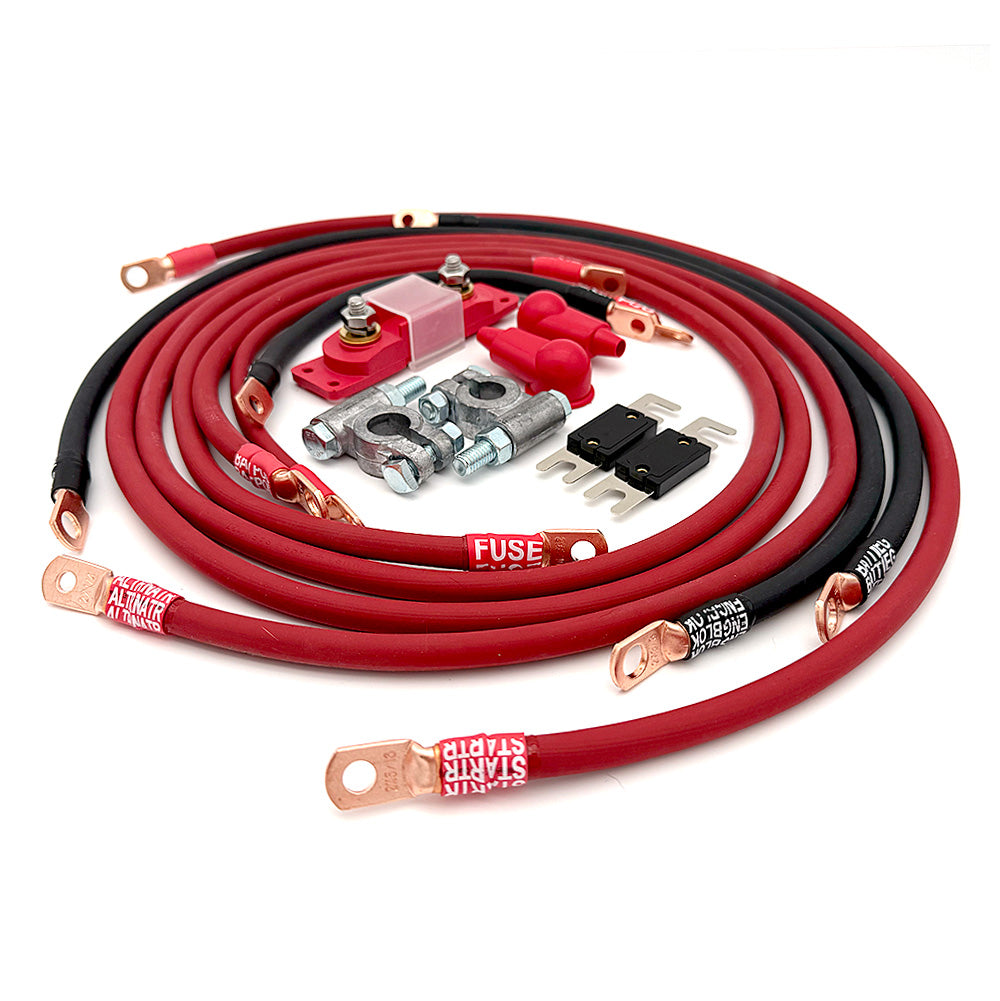

Kit Overview

The 4Runner Gen 3 battery cable is designed to replace the factory wiring with high-quality, heavy-gauge cables. These cables provide better conductivity, reduce voltage drop, and prepare your vehicle for demanding electrical accessories.

Key features include:

• Heavy-duty cables: Built to handle high current demands for lighting, winches, and other electrical accessories.
• Premium connectors: Corrosion-resistant terminals ensure a secure and long-lasting connection.
• Custom length: Engineered specifically for 1996–2002 4Runner Gen 3 models.
• Ready for upgrades: Ideal for trucks equipped with overlanding, auxiliary batteries, or additional LED lighting.

Upgrading your battery cables is not just about performance; it’s about ensuring that your electrical system is safe, reliable, and ready for any modification you plan to add.

Tools Needed

Before starting, make sure to gather all necessary tools to make the installation smooth and safe. Having the right tools reduces frustration and ensures proper connections.

Required tools include:

• Socket set (metric sizes for battery terminals and mounting hardware)
• Wrenches (various sizes for tight spaces)
• Wire brush or sandpaper (to clean battery terminals)
• Electrical tape or heat shrink tubing
• Safety gloves and goggles
• Torque wrench (recommended for secure connections)
• Multimeter (to test voltage and ensure proper installation)

Having these tools ready will save time and prevent mistakes during the installation process.

Step-by-Step Installation

Installing the battery cable on your 4Runner Gen 3 is straightforward if each step is followed carefully. This guide assumes a single battery configuration.

Step 1: Safety First

Before touching the battery, disconnect the negative terminal first. This prevents any accidental short circuits. Wear gloves and goggles to protect hands and eyes.

Step 2: Remove Old Cables

Carefully disconnect the old battery cables. Take note of the routing and attachment points to replicate them with the new kit. Cleaning battery terminals with a wire brush or sandpaper will help create a better connection.

Step 3: Install the Positive Cable

Attach the new positive cable from the battery to the starter and alternator. Ensure terminals are tight and corrosion-free. If using a torque wrench, tighten according to factory specifications.

Step 4: Install the Negative Cable

Connect the negative cable from the battery to the chassis ground point. Make sure the connection is solid to avoid grounding issues.

Step 5: Route Cables Properly

Follow factory cable paths to avoid contact with moving parts, heat sources, or sharp edges. Use zip ties or clamps to secure cables in place. Proper routing ensures longevity and prevents damage.

Step 6: Recheck Connections

Double-check all connections. Loose terminals can cause voltage drops, which may affect your Toyota 4Runner like LED lights or winches.

Step 7: Reconnect the Battery

Attach the positive terminal first, then the negative terminal. This reduces the risk of short circuits.

Safety Precautions

Handling vehicle electrical systems can be dangerous if not approached carefully.

• Always disconnect the negative battery terminal first.
• Wear protective gloves and eye protection.
• Avoid touching metal tools across battery terminals.
• Keep flammable materials away from the battery area.
• Ensure the vehicle is off and parked securely before starting.

Following these precautions minimizes the risk of injury or damage to your 4Runner.

Testing and Maintenance

After installation, test your system before powering up any accessories:

1. Use a multimeter to check battery voltage at terminals.
2. Turn on your truck LED driving lights or other accessories to confirm proper function.
3. Inspect cable routing for any signs of pinching or rubbing.

Regular maintenance includes:

• Checking terminals for corrosion every 6 months.
• Ensuring cables remain tight and free of wear.
• Keeping connections clean with a wire brush or contact cleaner.

Proper maintenance prolongs the life of your battery cable and prevents electrical issues down the line.

Related 4Runner Upgrades

Installing a new battery cable opens opportunities for other Toyota 4Runner:

• Overlanding Gear: Install roof racks, fridges, or auxiliary batteries without stressing your electrical system.
• Lighting Upgrades: Power high-performance LED light bars and round lights without voltage drop.
• Winches & Accessories: Safely run additional electrical accessories for off-road adventures.

Pairing a battery cable upgrade with these modifications ensures your 4Runner performs reliably under demanding conditions.

Where to Buy

The 4Runner Gen 3 battery cable is available through the 4Runner Collection, ensuring compatibility with 1996–2002 models and proper fitment for factory and upgraded electrical systems. Each kit includes premium-grade cables, heavy-duty connectors, and corrosion-resistant terminals designed for reliable power delivery and long-term durability.

All components are ready for straightforward DIY installation. To further enhance performance and trail readiness, explore overlanding for mounting gear solutions and accessories, along with Lighting Upgrades to support auxiliary lights and electrical accessories.

Frequently Asked Questions

1: How long does the installation take?
Installation typically takes 60–90 minutes for someone familiar with basic tools.

2: Do I need to remove the battery to install the kit?
No, the kit is designed for in-vehicle installation without removing the battery.

3: Can this kit handle additional accessories?
Yes, the heavy-gauge cables are built to support multiple upgrades, including lights, winches, and gear.

4: Is this kit compatible with Gen 3 4Runner models only?
Yes, it’s specifically engineered for 1996–2002 Toyota 4Runner Gen 3 models.

5: How do I prevent corrosion on the new cables?
Apply dielectric grease to terminals and regularly inspect connections for signs of corrosion.

Power Your Build with Confidence

Upgrading your 4Runner’s electrical system with a battery cable kit is a smart, long-term investment when adding Toyota 4Runner upgrades, performance accessories, and gear. A properly installed kit improves power delivery, reduces electrical strain, and ensures lighting, winches, and other upgrades operate safely and consistently in demanding conditions.

Trusted by offroad and overlanding enthusiasts, JC Customs Metal Fab designs solutions built to handle real-world use, providing confidence on daily drives and remote adventures alike.
