This is for the .dxf file of all the parts I cut out for the press brake build. This file is only for the plate parts, not the tube or beams.

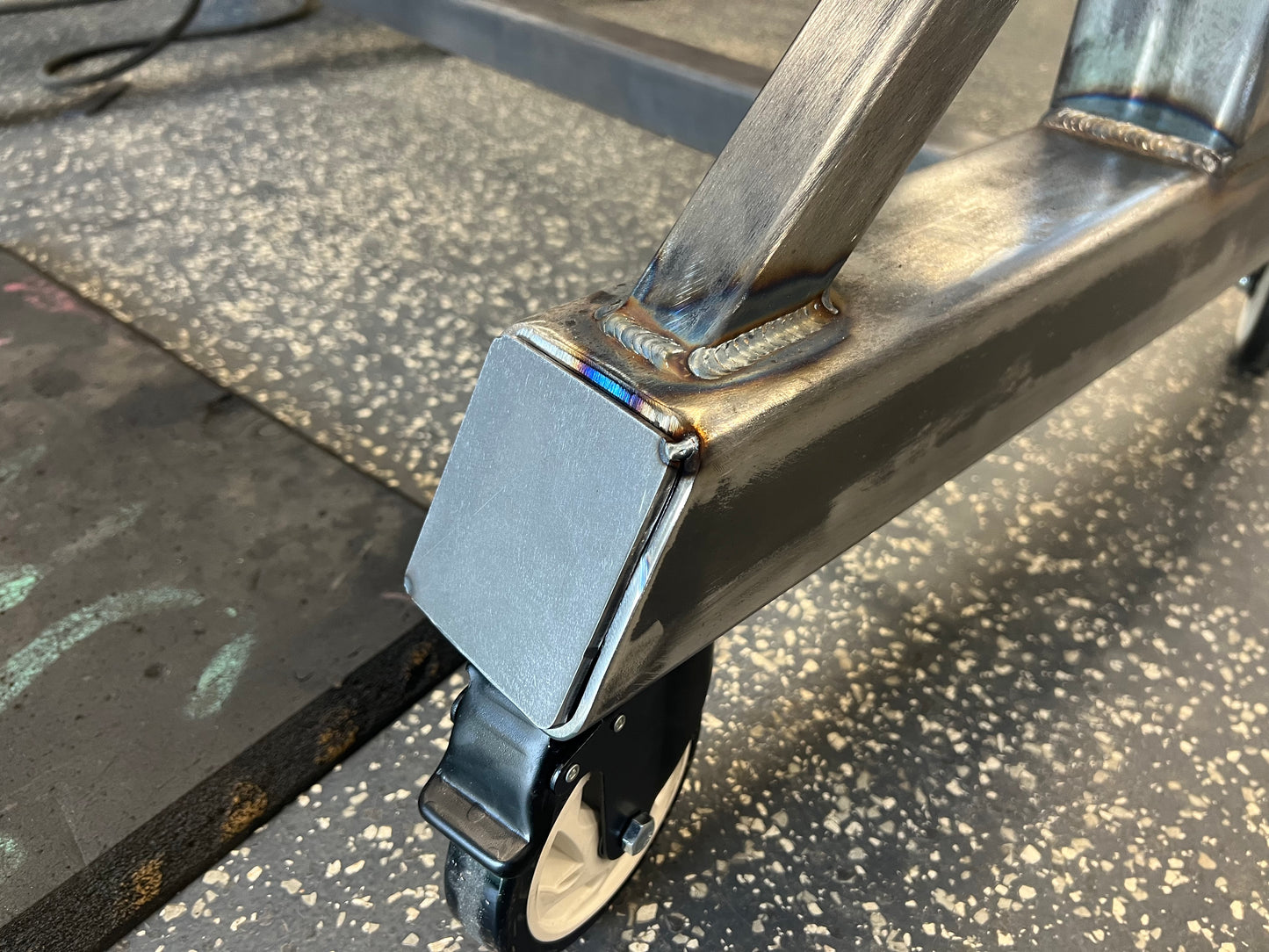

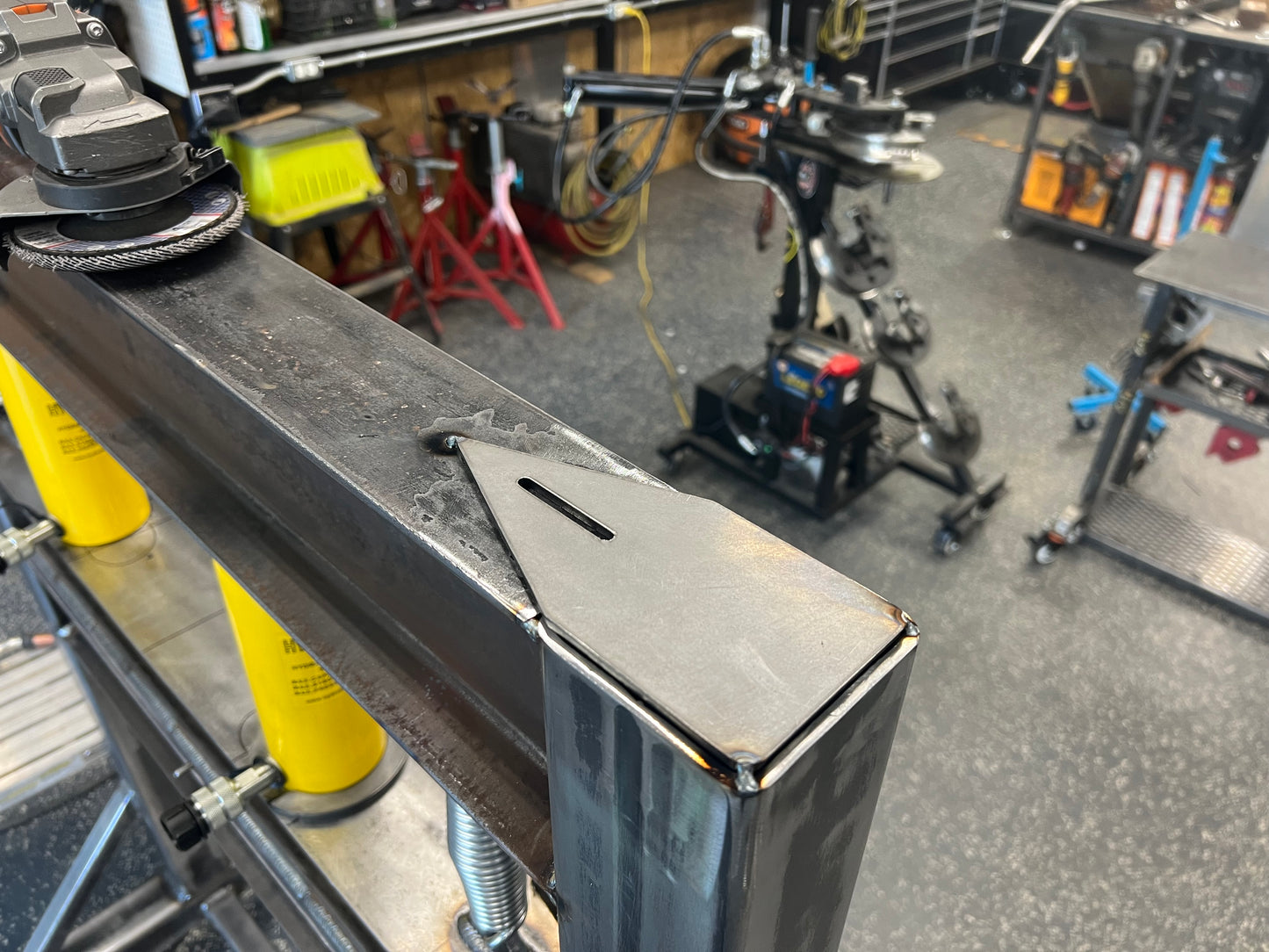

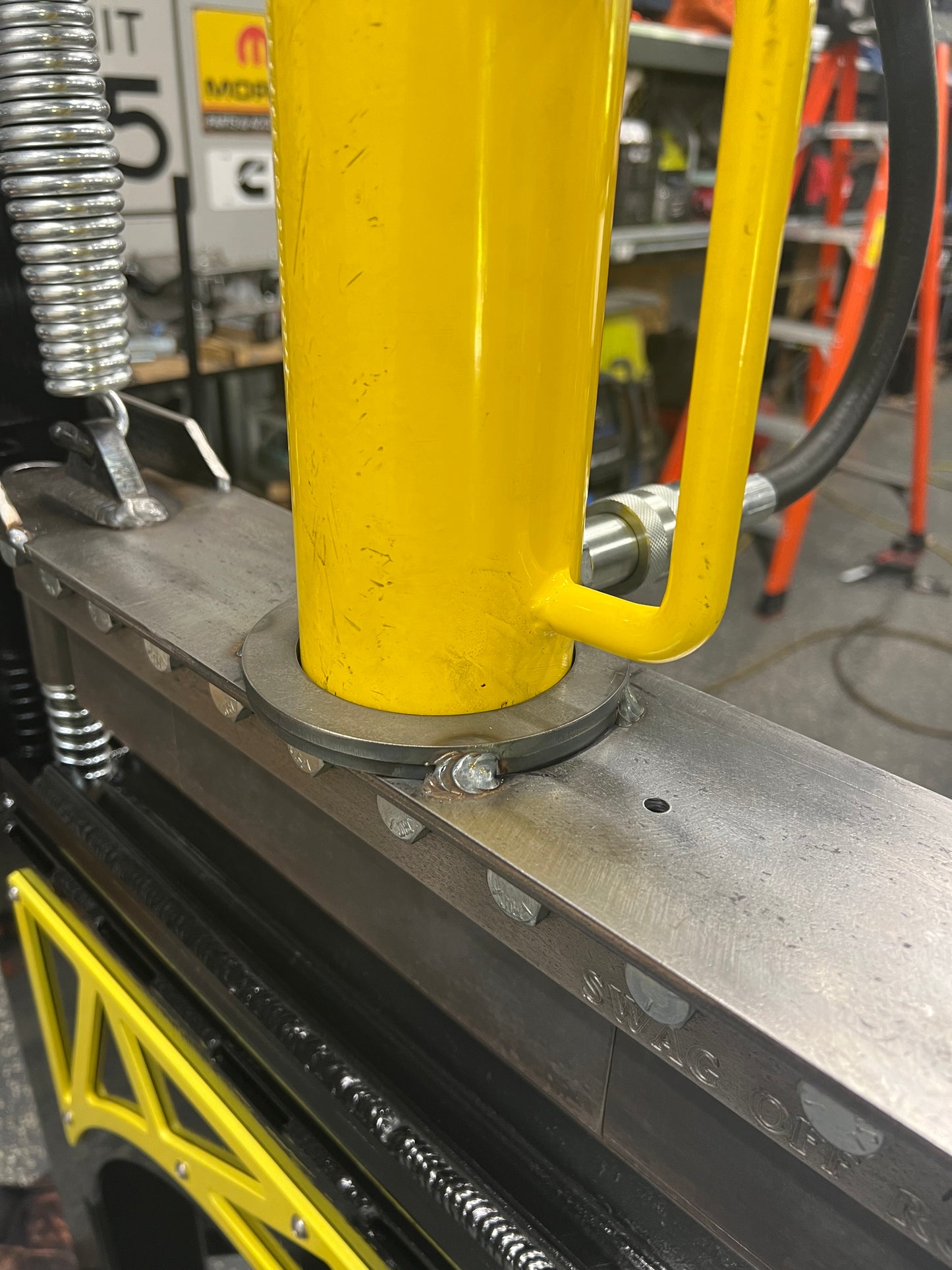

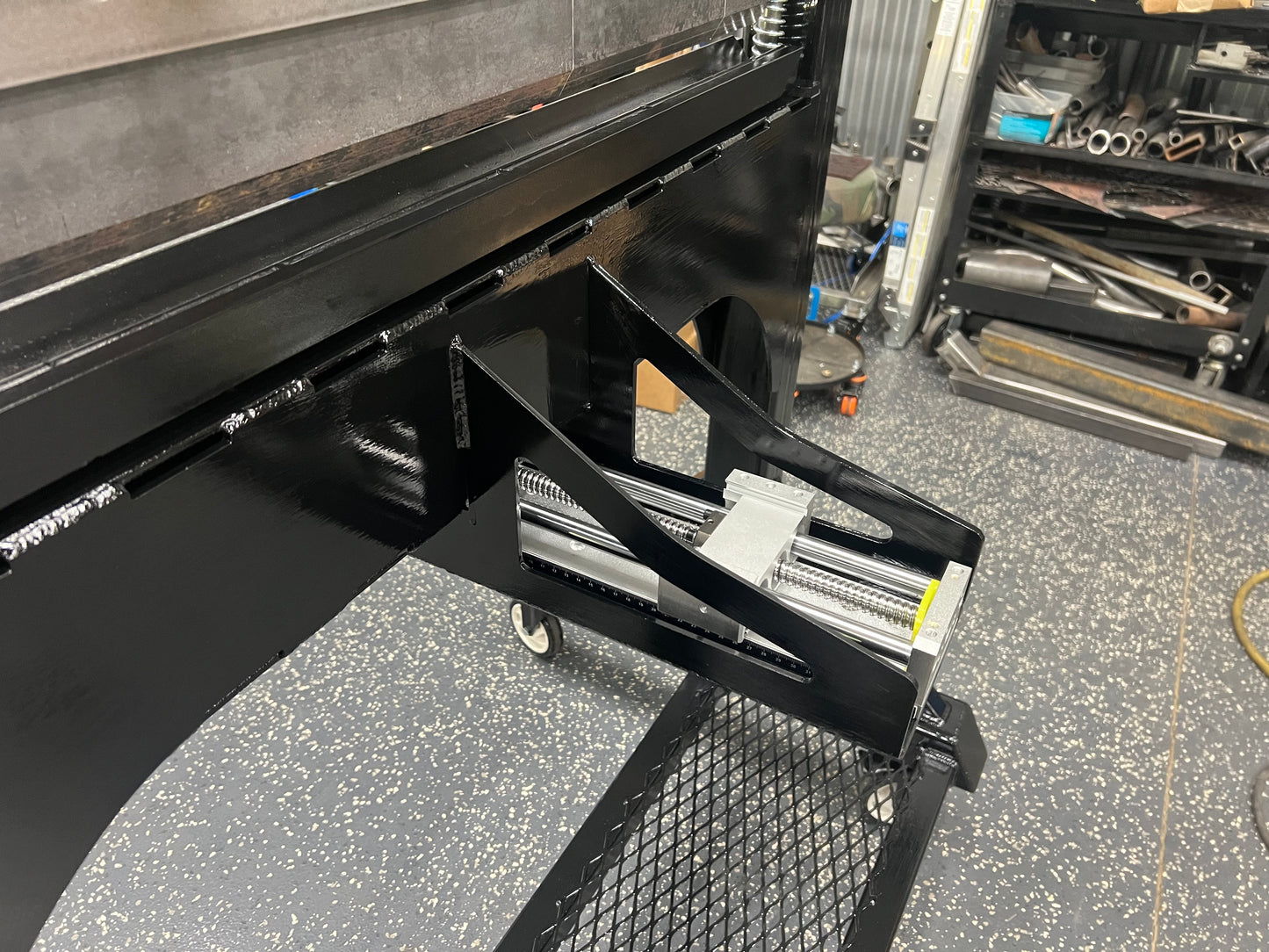

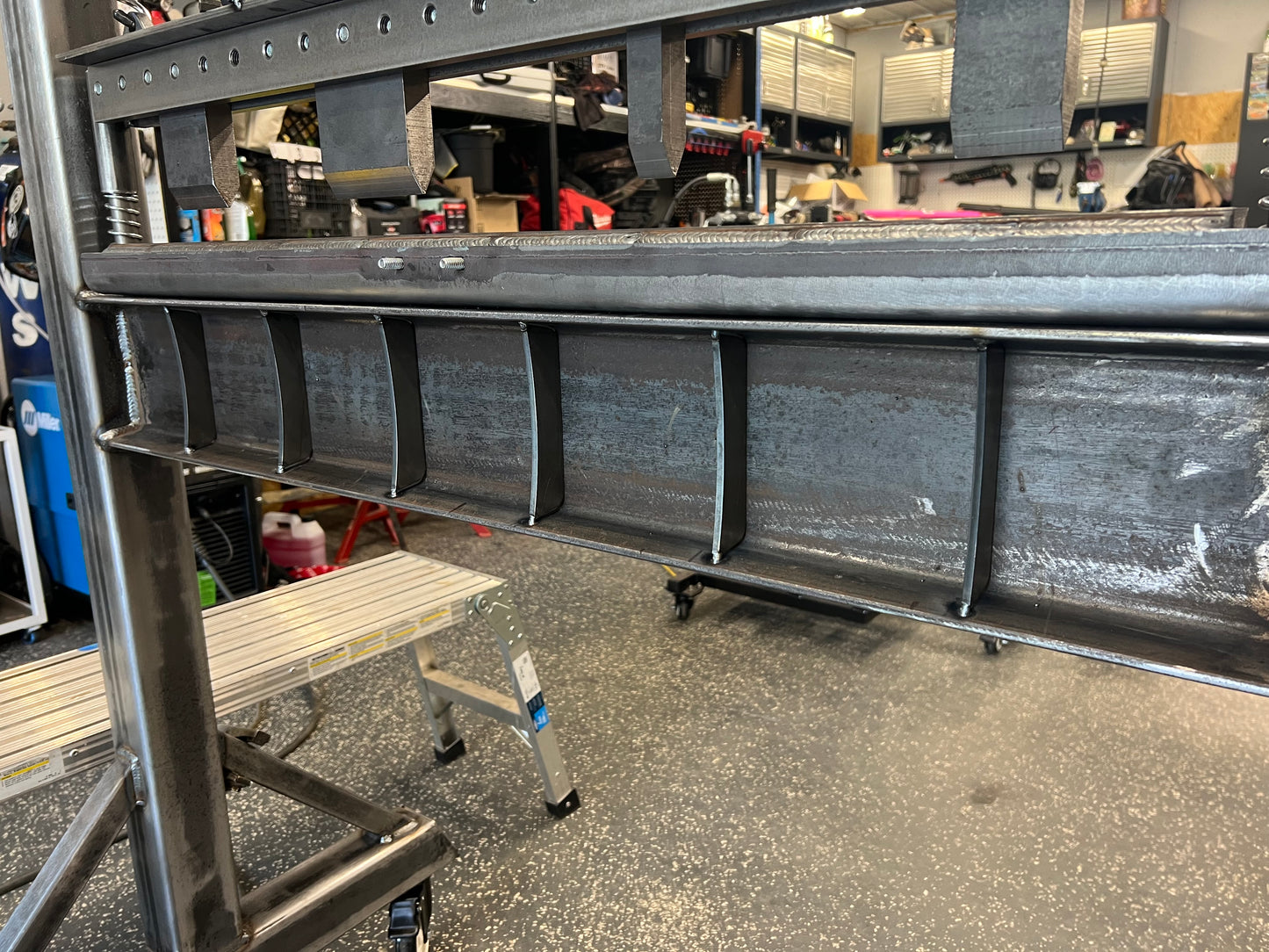

Parts include: Cylinder mounts, interior I beam gussets, I beam box plates, I beam box plate overlays, backstop mount, bottom feet caps, top post caps.

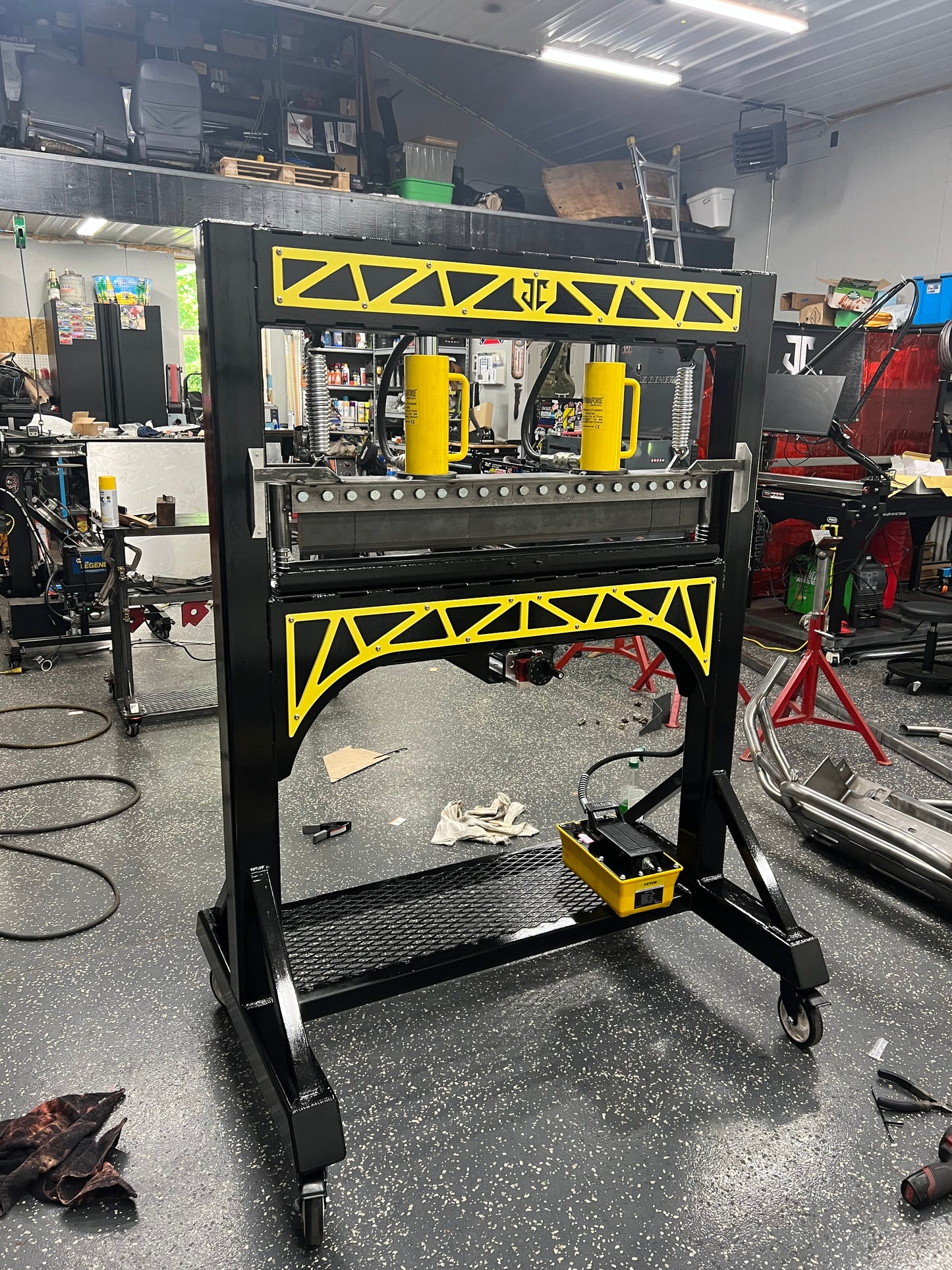

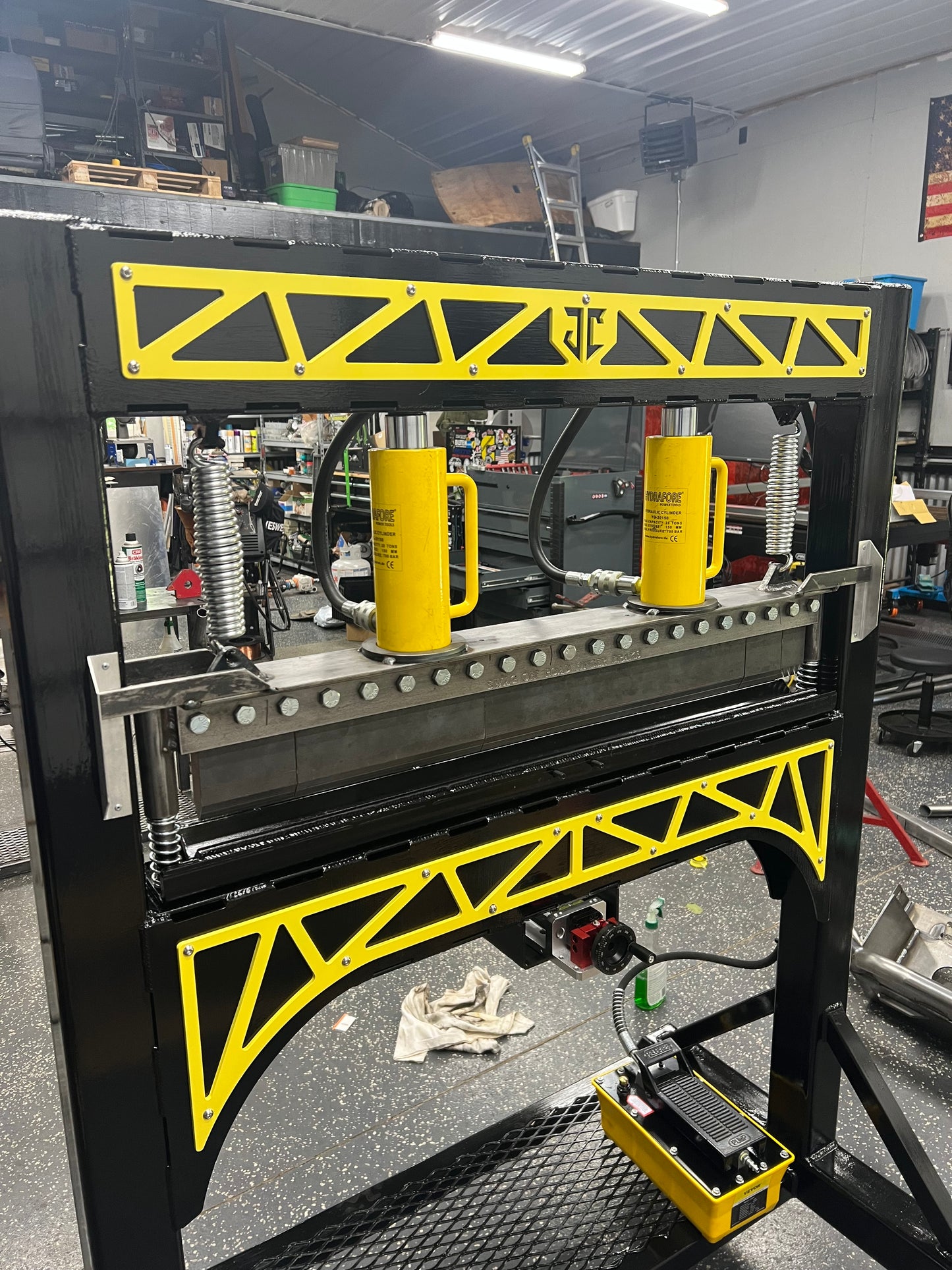

This build was designed around Swag Offroad’s 40” press brake kit. Their kits are only the brake so you have to make your own frame. For the frame itself I used 3.5x3.5x.250 square tube for the upright beams and legs. The I beams are a 6x12.5 cut to 41” the height up your post will depend on where you want the bottom die to set.
